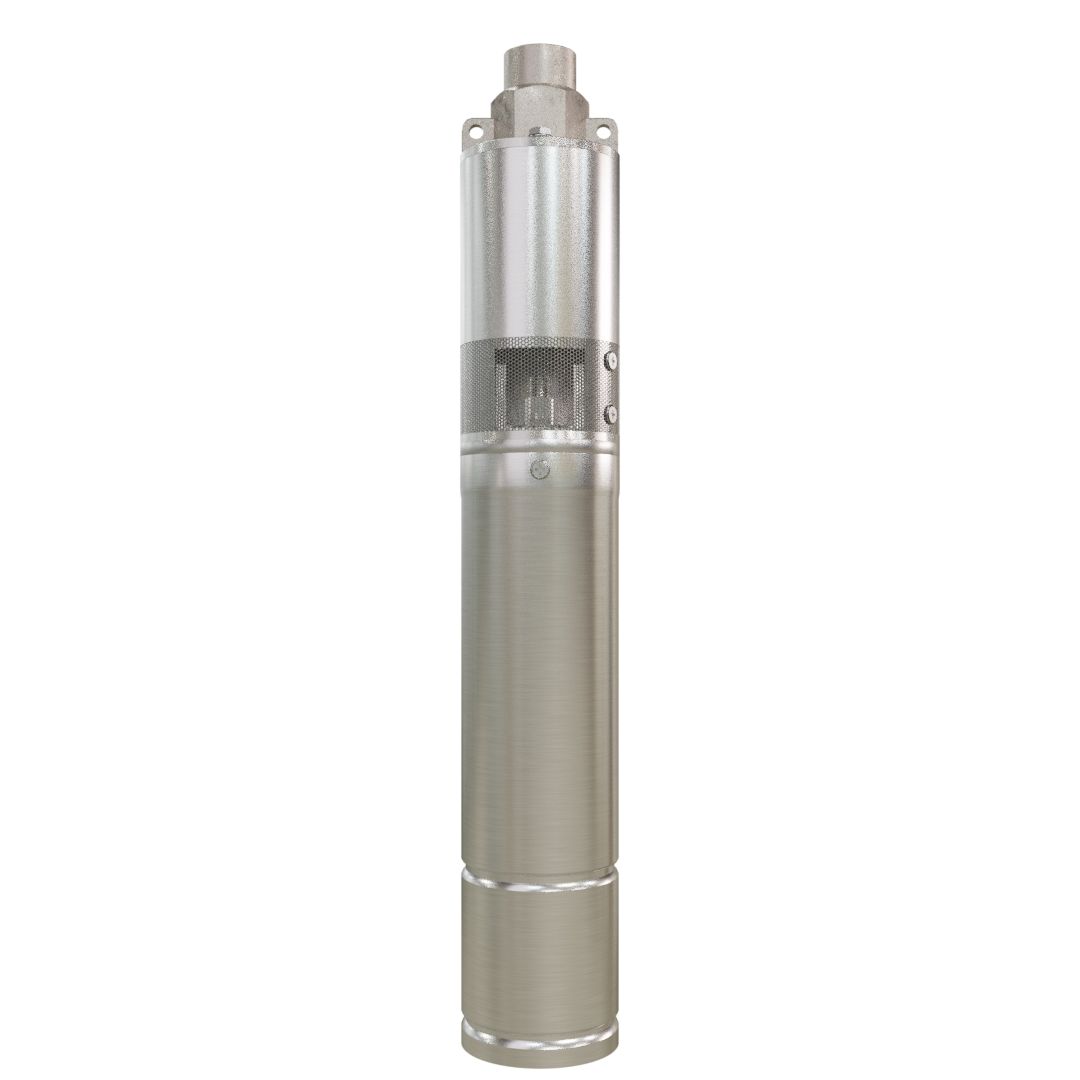

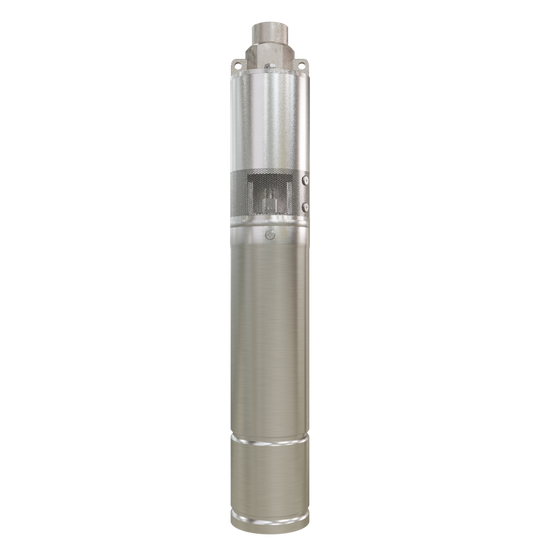

The new MK2 Shervey solar bore water pump with a neat design and clean metal

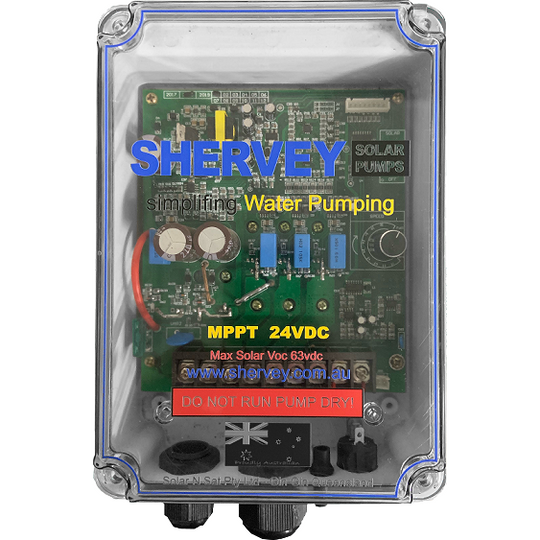

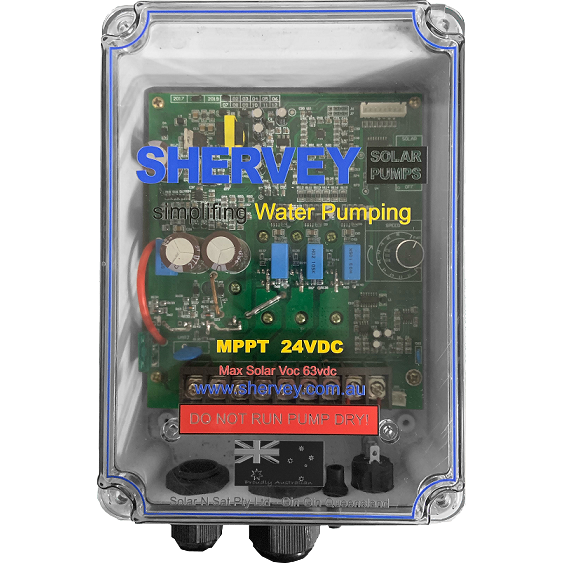

MPPT Controller showing all the circuits and the outer casing that protects the circuit board
a close up of all the 6 black solar panels used in the Solar Pump Install
  • Load image into Gallery viewer, All 6 Pumps lined up with the MK2 New Solar Pump packaged with all necessary equipment that comes with the bundle
  • Load image into Gallery viewer, The bundles custom SolarNSat laser cut box neatly packaging all the required equipment for installing the solar bore pump
  • Load image into Gallery viewer, The new MK2 Shervey solar bore water pump with a neat design and clean metal
  • Load image into Gallery viewer, MPPT Controller showing all the circuits and the outer casing that protects the circuit board
  • Load image into Gallery viewer, a close up of all the 6 black solar panels used in the Solar Pump Install

PMP5100 - Complete Bundle with 1920watts of Solar (2yr Warranty)

$5,690.00
$5,690.00
$5,690.00
Sold out
Tax included. Shipping calculated at checkout.

This pump kit is suitable for bores/dams with a total lift from standing water level up to 70mtrs & will pump up to 10hrs per day in summer. Our kits are designed for DIY install with easy to follow instructions saving you time and money.

Kit includes

  • 1000watt Shervey Solar Pump
  • MPPT Solar Pump Controller
  • 40mtrs Heavy Duty 4.0mm Pump Cable
  • Solar Panel Mounting Frame, Rails & Fittings
  • Bore Cap 1-1/2"
  • Pressure Switch with 3mtr Cable
  • Safety Line with Easy Fit Stainless Clips 40mtr
  • Highest Quality Bearings for Longer Life
  • 6 x 320watt A-grade Solar Panels (1950mm x 992mm)
  • Solar Connection Cable
  • Solar Panel Joiners
  • Low Well Sensor
  • User Manual

 * You will need to source your own Polypipe and fittings


Specifications

 Pump Diameter 4"
Outlet Diameter 1"
Wet End Type Helical Rotor (Screw)
Max Submersion 40mtrs
Warranty 24 months



Max Flow Rate

0mtrs TD Head 4000lts per hour (885gal)
20mtrs TD Head 3600ltrs per hour (800gal)
40mtrs TD Head 3150ltrs per hour (700gal)
60mtrs TD Head 2500ltrs per hour (555gal)
70mtrs TD Head 2100ltrs per hour (465gal)
