Name: PMP5080 - Complete Bundle with 1920watts of Solar (2yr Warranty)
Brand: Shervey Solar Pumps
SKU: PMP5080a
Price: 5690.0 AUD
Availability: InStock

All 6 Pumps lined up with the MK2 New Solar Pump packaged with all necessary equipment that comes with the bundle

A custom made package box that is laser cut to fix all the required equipment for the solar panel install.

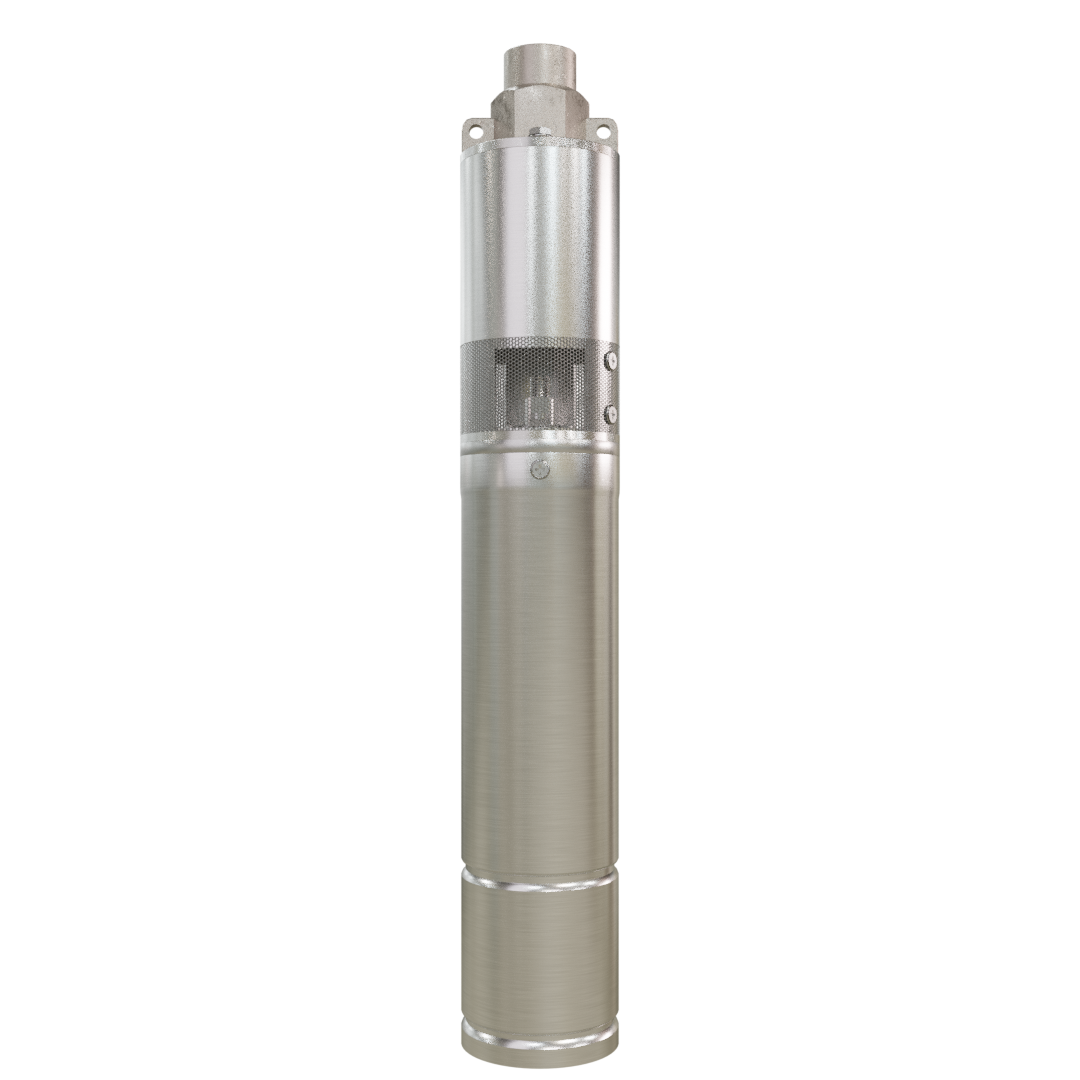

The new MK2 Shervey solar bore water pump with a neat design and clean metal

PMP5080 - Complete Bundle with 1920watts of Solar (2yr Warranty)

a close up of all the 6 black solar panels used in the Solar Pump Install

$5,690.00

GST included. Shipping calculated at checkout (orders over $500 free).

Choose Cable, Safety Rope & Sensor Length

Standard 40mtrs

50mtrs

60mtrs

80mtrs

100mtrs

This pump kit is suitable for bores/dams with a total lift from standing water level up to 100mtrs & will pump up to 10hrs per day in summer. Our kits are designed for DIY install with easy to follow instructions saving you time and money.

Kit includes

1000watt Shervey Solar Pump

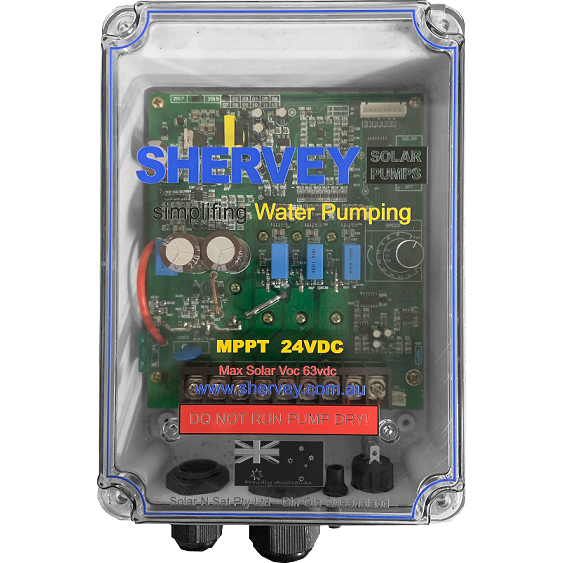

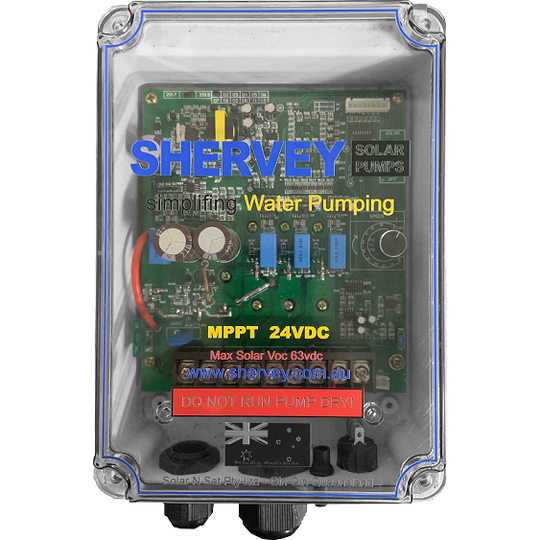

MPPT Solar Pump Controller
40mtrs Heavy Duty 4.0mm Pump Cable
Solar Panel Mounting Frame, Rails & Fittings
Bore Cap 1-1/2"
Pressure Switch with 3mtr Cable
Safety Line with Easy Fit Stainless Clips 40mtr
High Quality Bearings for Longer Life
6 x 320watt A-grade Solar Panels (1950mm x 992mm)
Solar Connection Cable
Solar Panel Joiners
Low Well Sensor
User Manual

* You will need to source your own Polypipe and fittings

Specifications

Pump Diameter	4"
Outlet Diameter	1"
Wet End Type	Helical Rotor (Screw)
Max Submersions	40mtrs
Warranty	24 months

Max Flow Rate

0mtrs TD Head	2500ltrs per hour (555gal)
20mtrs TD Head	2200ltrs per hour (485gal)
40mtrs TD Head	2000ltrs per hour (445gal)
60mtrs TD Head	1850ltrs per hour (410gal)
80mtrs TD Head	1500ltrs per hour (330gal)
100mtrs TD Head	1000ltrs per hour (220gal)
