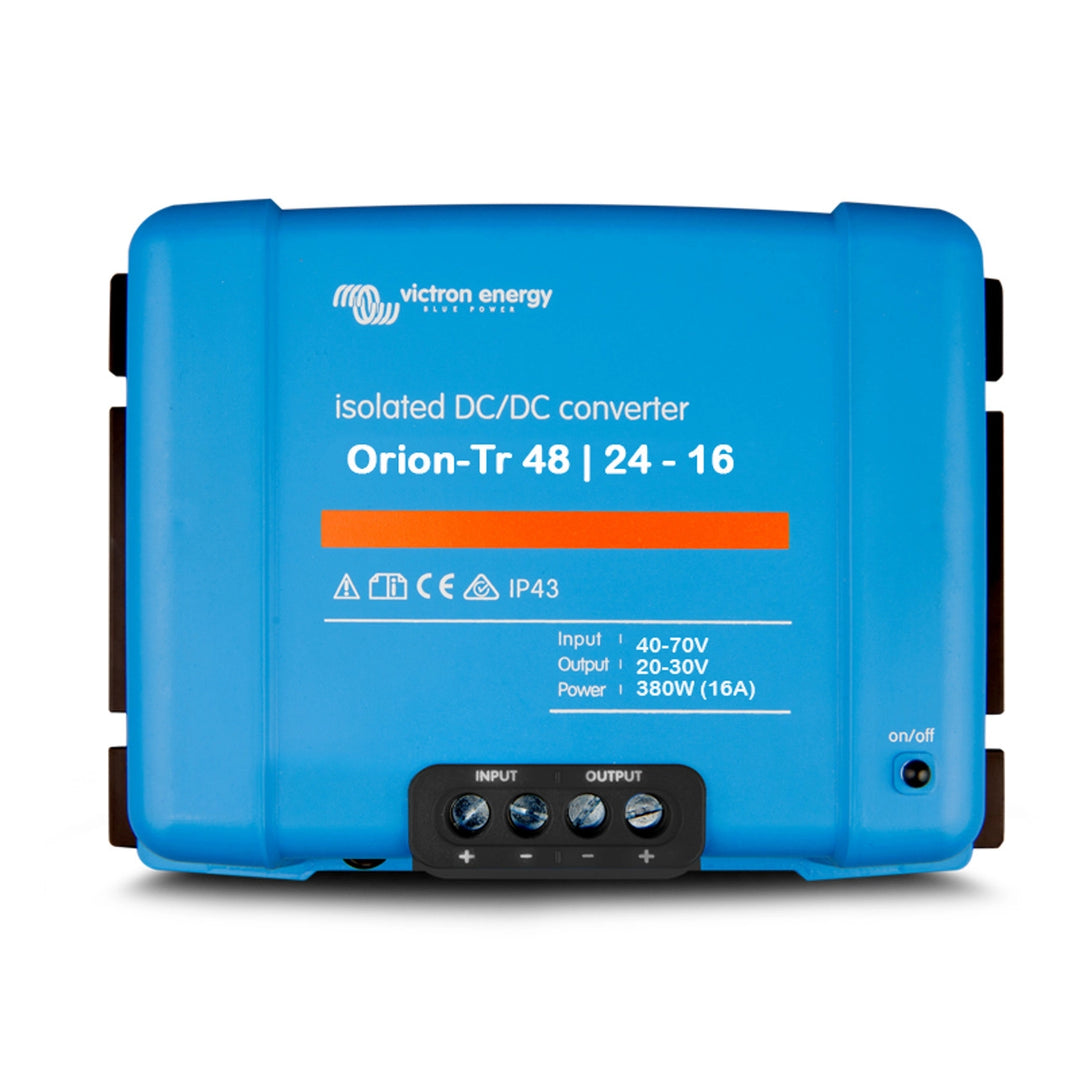

Orion-Tr 48/24-16A (380W) Isolated Dc-Dc Converter

The Orion-Tr 48/24-16A Isolated DC-DC converter is a high-power, isolated converter designed for efficient power conversion. It comes with a remote on-off terminal, eliminating the need for a high current switch in the input wiring. This converter can be used in various applications, including those that require galvanic isolation. The unit is designed to be short circuit proof and can be paralleled with other units to increase output current.

Features

• Remote on-off terminal for efficient operation.
• Short circuit proof design.
• Can be connected in parallel to increase output current.
• High temperature protected.
• Galvanic isolation between input, output, and case.
• Suitable for a wide range of applications.

• Input voltage range: 40-70 V
• Under voltage shutdown: 28 V
• Under voltage restart: 30 V
• Nominal output voltage: 24.2 V
• Output voltage adjust range: 20-30 V
• Continuous output current at 40°C: 16 A
• Maximum output current (10 s) at nominal output voltage minus 20%: 25 A
• Short circuit output current: 40 A
• Continuous output power at 25°C: 430 W
• Continuous output power at 40°C: 380 W
• Efficiency: 89%
• No load input current: < 80 mA
• Galvanic isolation: 200 VDC between input, output, and case
• Operating temperature range: -20 to +55°C (derate 3% per °C above 40°C)
• DC connection: Screw terminals
• Maximum cable cross-section: 16 mm² AWG6
• Weight: 1.6 kg
• Dimensions (HxWxD): 130 x 186 x 70 mm

• Weight: 1.6 kg

• This product comes with a 5-year warranty.
