Name: PMP5040 Mk2 - Complete Bundle with 640watts of Solar (2yr Warranty)
Brand: Shervey Solar Pumps
SKU: PMP5040a
Price: 3990.0 AUD
Availability: InStock

Two panels lined up behind a new solar MK2 bore pump aside with all the other accessories such as MPPT controller and a low well sensor

The Custom Laser cut SolarNSat Wooden box containing perfectly fitted equipment for the install

The new MK2 Shervey solar bore water pump with a neat design and clean metal

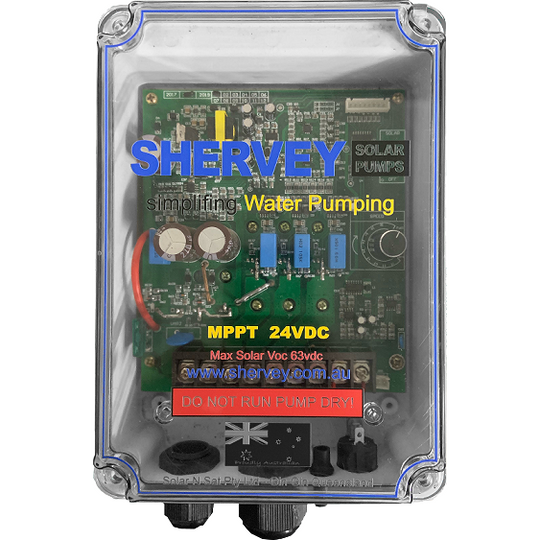

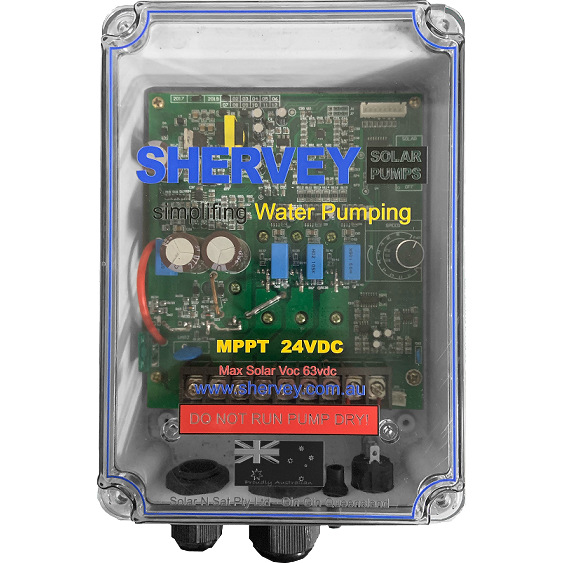

MPPT Controller showing all the circuits and the outer casing that protects the circuit board

a close up of the 2 black solar panels used in the Solar Pump Install

$3,990.00

GST included. Shipping calculated at checkout (orders over $500 free).

Choose Cable, Safety Rope & Sensor Length

Standard 40mtrs

50mtrs

60mtrs

70mtrs

80mtrs

This pump kit is suitable for bores/dams with a total lift from standing water level of up to 60mtrs & will pump up to 10hrs per day in summer. Our kits are designed for DIY install with easy to follow instructions to save you time and money.

Kit includes

450watt 48v Solar Pump
MPPT Solar Pump Controller
40mtrs High Quality Pump Cable
Solar Panel Mounting Frame, Rails & Fittings
Bore Cap 1-1/2"
Pressure Switch with 3mtr Cable
Safety Line with Easy Fit Stainless Clips 40mtr
High Quality Bearings for longer life
2 x 320watt A-grade Solar Panels (1950mm x 992mm)
Solar Connection Cable
Low Well Sensor
User Manual

* You will need to source your own Polypipe and fittings.

Specifications

Pump Diameter	3 inch
Outlet size	3/4"
Type	Helical Rotor (Screw)
Max Submersion	40mtrs
Warranty	24 months

Max Flow Rate

0mtrs TD Head	2100ltrs per hour (460gal)
10mtrs TD Head	2000ltrs per hour (440gal)
20mtrs TD Head	1900ltrs per hour (415gal)
30mtrs TD Head	1800ltrs per hour (400gal)
40mtrs TD Head	1600ltrs per hour (355gal)
50mtrs TD Head	1500ltrs per hour (330gal)
60mtrs TD Head	1350ltrs per hour (290gal)
