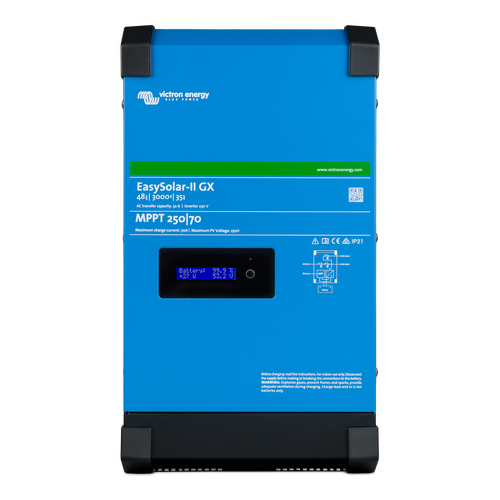

The EasySolar-II 24/3000/70-32 MPPT 250/70 GX is the all-in-one solar power solution from Victron Energy. It integrates a MultiPlus-II inverter/charger, a SmartSolar MPPT -Tr solar charge controller, and a GX device with a 2 x 16-character display. These elements are prewired together inside a single unit, simplifying most installations and saving both time and money.
Features
-
All-in-one solar power solution: Integrates inverter/charger, solar charge controller, and GX device.
-
Display and Wi-Fi: Monitor battery, inverter, and solar charge controller parameters. Access and change settings via Wi-Fi.
-
Solar charge controller: The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger.
-
GX device: Includes a BMS-Can interface, USB port, Ethernet port, and VE.Direct port.
-
VRM app for Wi-Fi: Monitor and manage your Victron Energy system from your smartphone or tablet.
-
VRM Portal: Free remote monitoring website that displays system data in a comprehensive graphical format.
Specifications
-
Inverter/Charger:
- Input voltage range: 19 – 33 V
- Output voltage: 230 VAC ± 2 %
- Frequency: 50 Hz ± 0,1 %
- Continuous output power at 25°C: 3000 VA / 2400 W
- Continuous output power at 40°C: 2200 W / 1700 W
- Peak power: 5500 W
- Efficiency: 94%
- Zero load power: 13 W
- Charge voltage 'absorption': 28.8 V
- Charge voltage 'float': 27.6 V
- Maximum battery charge current: 70 A
-
SmartSolar Charge Controller:
- Maximum output current: 70 A
- Maximum PV power: 2000 W
- Maximum PV open circuit voltage: 250 V
- Efficiency: 99%
- Charge voltage 'absorption': 57,6 V
- Charge voltage 'float': 55,2 V
-
General:
- Interfaces: BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi
- Operating temperature range: -20 to +45°C
- Humidity: max 95%
- Weight: 26 kg
- Dimensions (HxWxD): 499 x 268 x 237 mm
Shipping
Warranty
- This product comes with a 5-year warranty.
